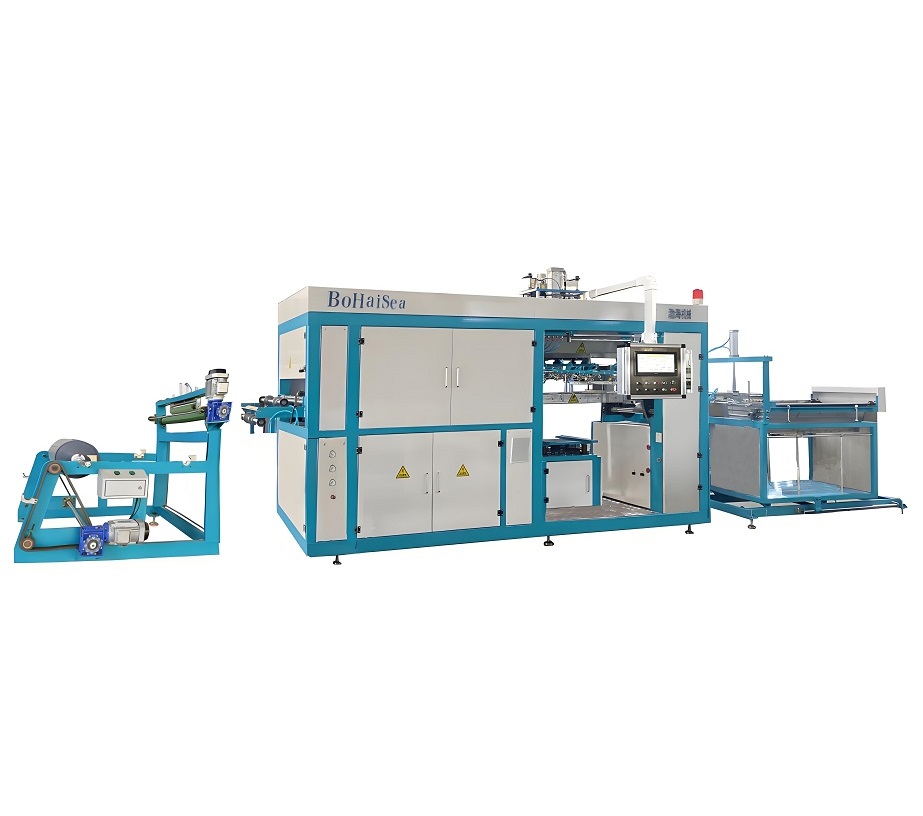

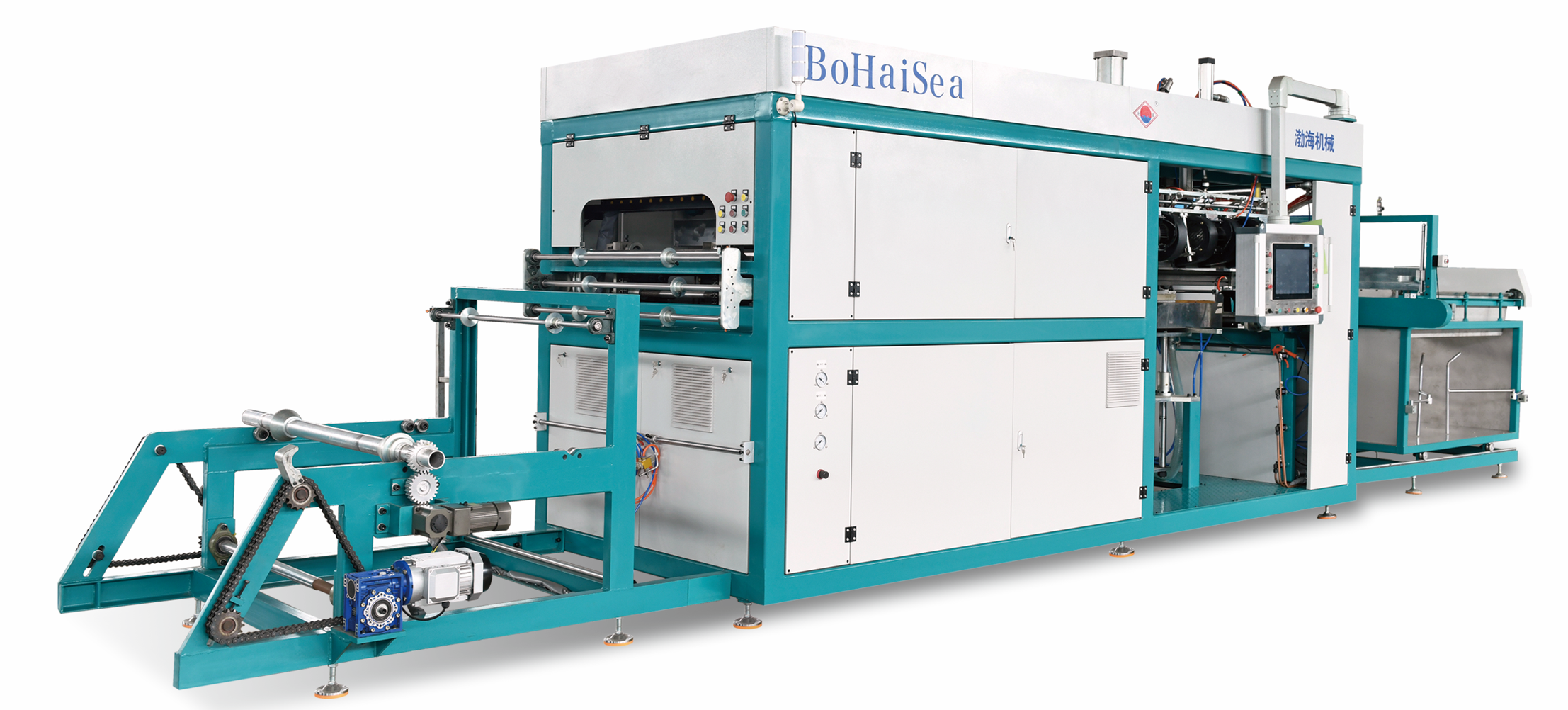

Product Photo:

A, the function and characteristics:

1. The equipment used in PLC control, high-definition industrial touch screen as human-machine interface.

2. The servo motor driver, a more accurate positioning, forming a more stable.

3. The servo pull piece, infinite length adjustment, high accurate and stable.

4. The electric heating furnace temperature control system adopts full computer intelligent automatic compensation control, distinguish - control - using digital input interface, has the high precision fine-tuning, temperature uniformity, stability, not influenced by external voltage, temperature fluctuations of no more than 1 degree), low energy consumption, energy saving about 15%), the advantages of long service life of the furnace plate.

5. With product information and parameters file memory function.

6. Send caterpillar track width can be synchronous automatic electrical adjustment or division.

7. Electric heating furnace is automatically removed from the device.

8. Mechanical feeding device, reduce labor intensity.

9. The finished product automatic blanking collection.

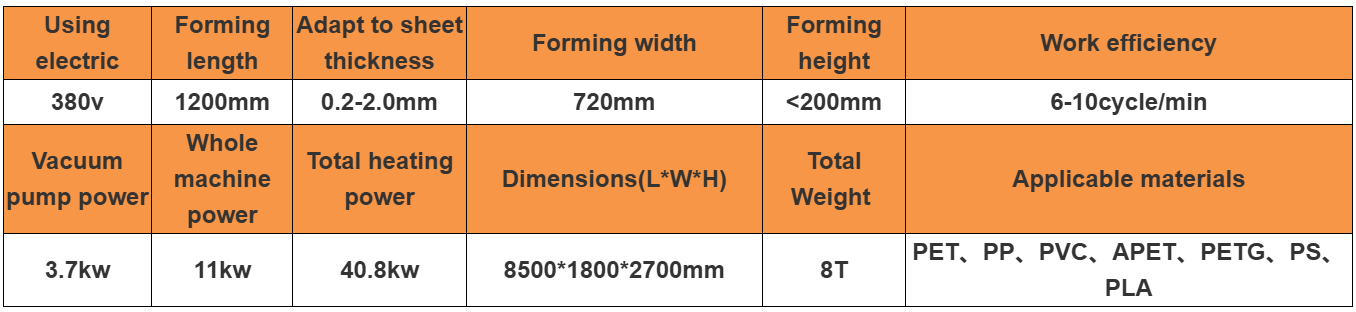

The product parameters:

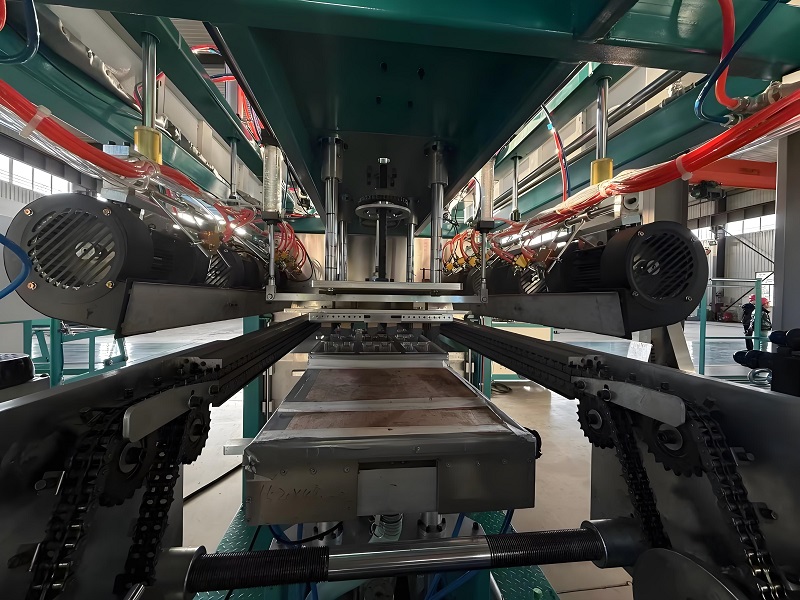

Machine detail photo:

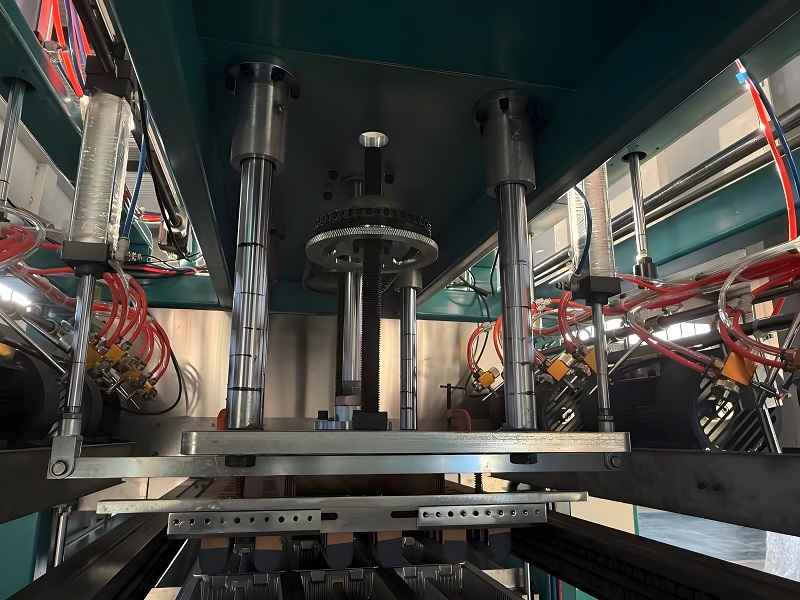

1.The upper forming device is driven by a servo motor and precision gear rack to carry out rapid, stable and precise lifting movements. It ensures that the position where the mold contacts the sheet and the mold closing depth are extremely accurate and repeatable, which is crucial for products with complex shapes, deep drawing requirements or high requirements for wall thickness consistency.

2.The lifting speed can be steplessly adjusted and precisely controlled at different stages of the stroke, optimizing the forming process, reducing impact, and improving the yield rate and mold service life.

The built-in secondary vacuum makes it easier for high-difficulty products to be formed, reduces the rejection rate, and improves product quality.

The mold plate adopts a double-layer pull-out design, which can adapt to the width of various products. It is convenient to operate, safe, fast, and efficient.
