Functions and Features:

1. Mechanical, pneumatic, electrical integration. Every action is controlled by PLC program. Touch screen operation, simple and convenient.

2. The upper and lower die forming method.

3. The servo to send piece, infinite length adjustment, high accurate and stable.

4. On secondary electric furnace heating.

5. Electric heating furnace temperature control system adopts full computer intelligent automatic compensation control, man-machine interface in partition - control - digital input, has a high precision fine-tuning, temperature uniformity, stability (not influenced by external voltage, temperature fluctuations is less than 1 Degrees) low energy consumption, energy saving about 15%), the furnace plate advantages of long service life.

6. Molding, cutting unit, clamping servo motor control, automatic counting output.

7. Stack products for a variety of ways, for products can be customized.

8. With product information and parameters file memory function.

9. Send caterpillar track width can be synchronous automatic electrical adjustment or division.

The electric heating furnace was removed from the device automatically.

11. Mechanical feeding device, reduce labor intensity.

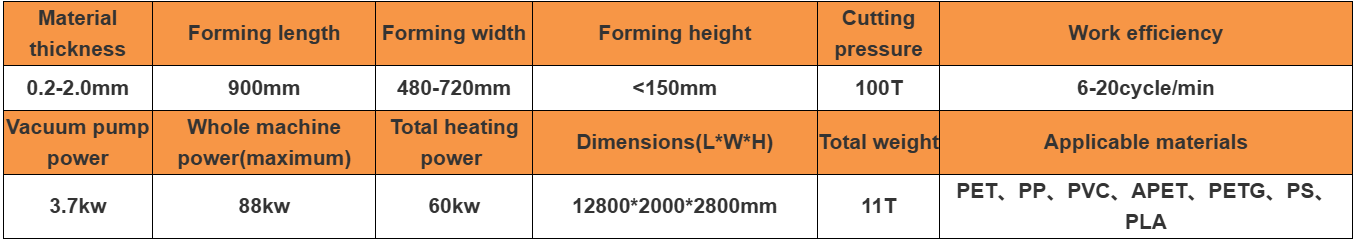

Product Parameter:

Detail Features:

The feeding system is linked with the heating and molding stations to ensure that material conveying is consistent with the process cycle.

The spacing between the two side baffles can be adjusted manually to adapt to sheets of different widths, preventing material edges from sagging or shifting due to an excessively wide feed opening and reducing cutting losses.

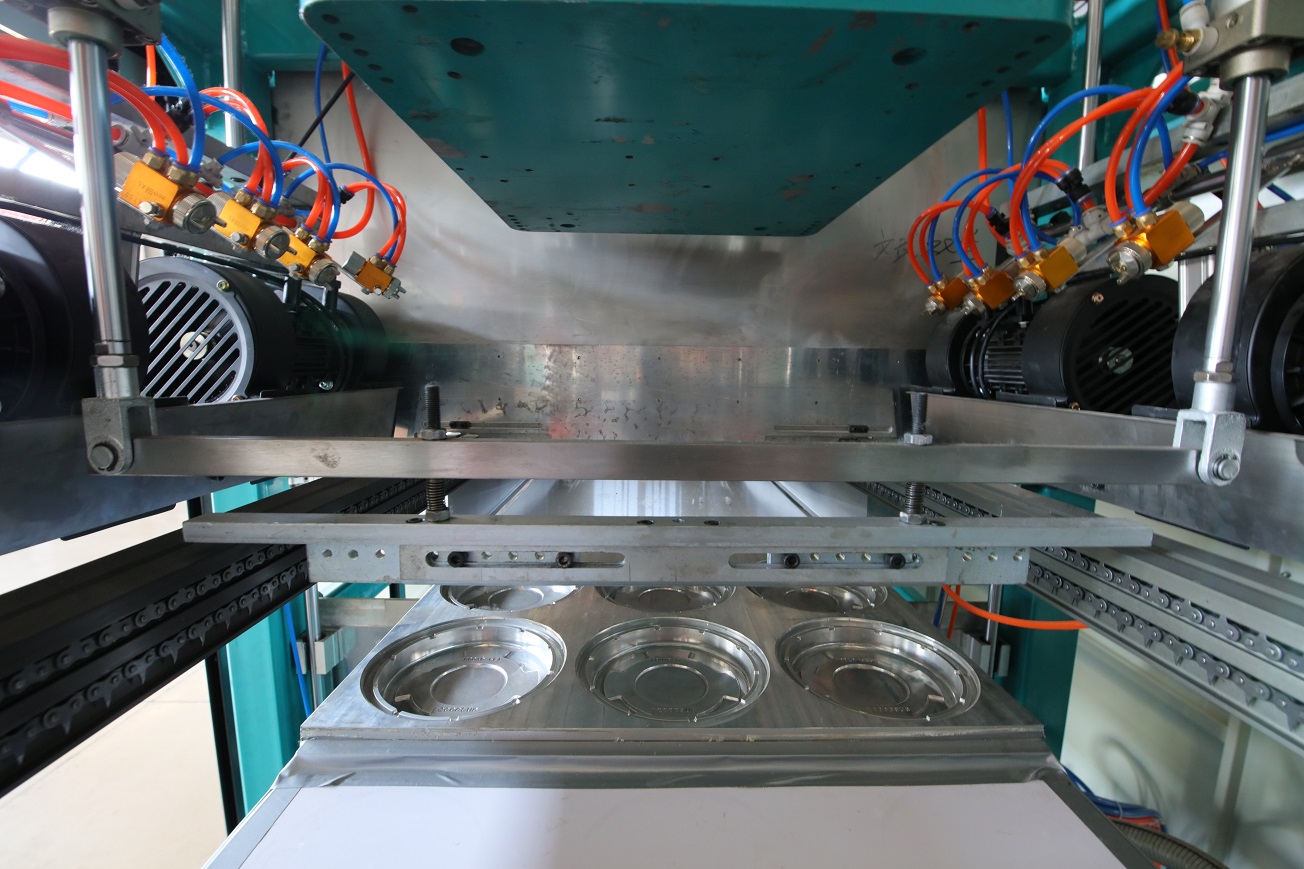

It is mainly used to quickly reduce the temperature of molded plastic products, enabling them to solidify and take shape, while avoiding deformation or shrinkage caused by uneven cooling. High-pressure multi-group centrifugal fans and imported spray devices are adopted to provide stable and uniform air flow.

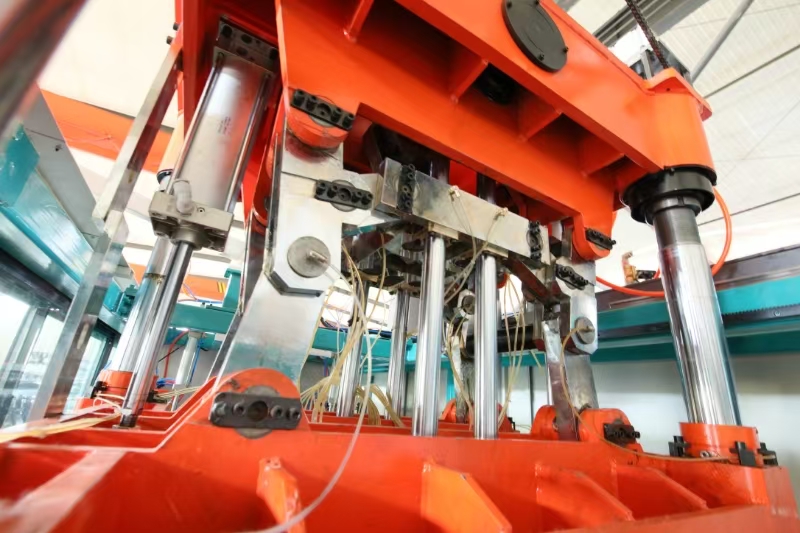

Station Arm

Made of high-rigidity alloy material with hard chrome plating on the surface, offering excellent anti-deformation capability and supporting the vertical movement of the cutting mechanism.

The torsion-resistant structure enhances the ability to withstand lateral forces, avoiding vibrations caused by eccentric loading during cutting.

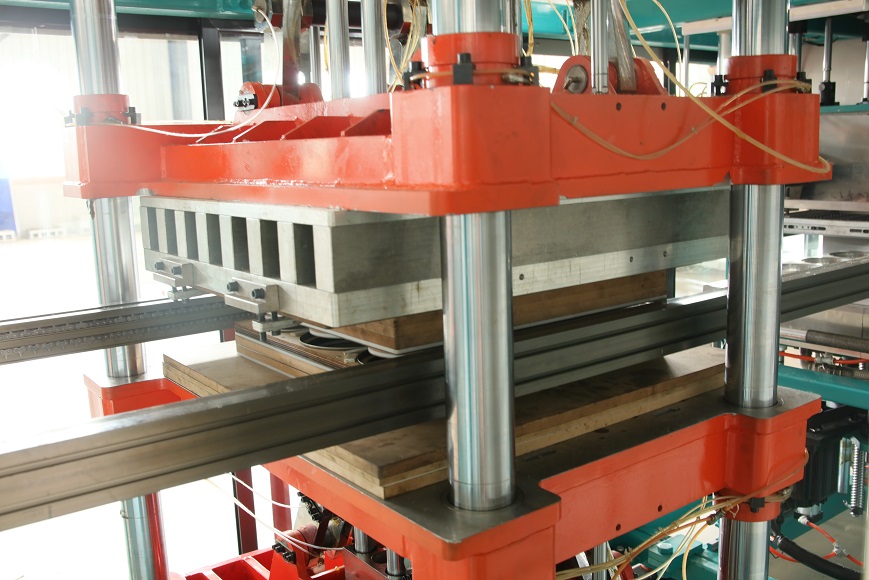

Station

The 4 guide pillars are made of 40 chromium steel, featuring good rigidity, precision, and wear resistance.

The servo system automatically adjusts the cutting pressure according to the material thickness and hardness to avoid over-cutting or incomplete cutting.

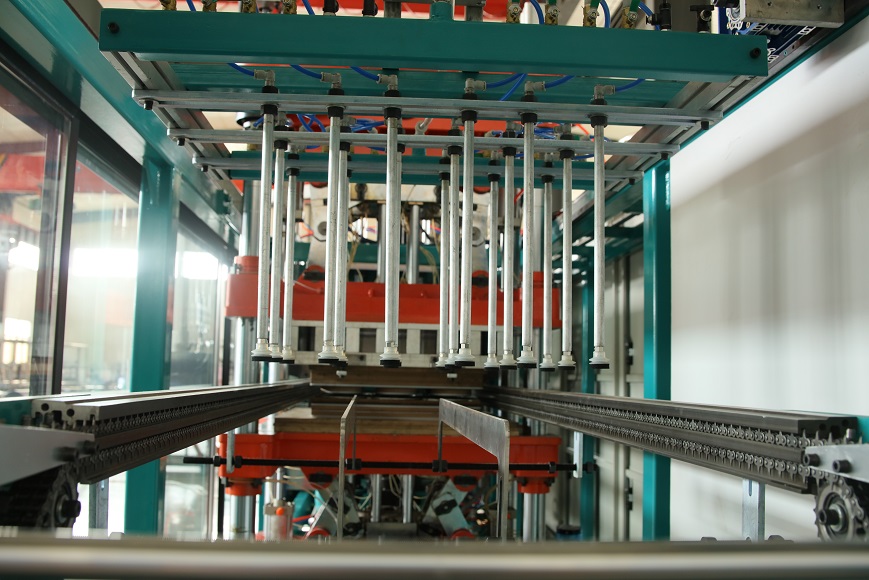

Align the position of finished products to ensure neat stacking; automatically group and stack according to the set quantity.

The servo motor drives the pallet to descend layer by layer to maintain consistent stacking height.

This replaces manual palletizing, reduces labor costs, and avoids contamination caused by human contact.
